Measuring Equipment AL mini

The small dimensioned measuring equipment is used in the small component assembly, in the watch industry as well as in laboratories for verification of measuring instruments and linear units. As an example the measurement of a 5-axis CNC-machine: here the test cube is attached either in the spindle or in the workpiece holder, so that the geometry of the machine tool can be checked quickly.

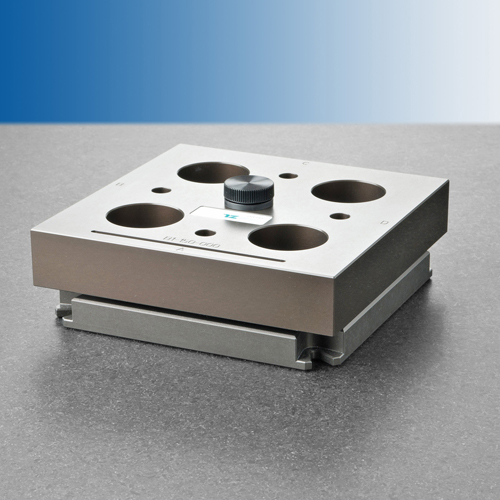

Each of the measuring equipment has the possibility of a thoughtful attachment. On the one hand to proceed with the unit in the machine room in all directions, on the other hand, because the measuring unit is light and could be displaced by the probe pressure.

The measuring equipment AL mini are made of high quality aluminum with a special surface treatment. The advantage of aluminum is a enormous benefit here.

Advantages:

  • Rapid temperature adjustment
  • Uniform temperature distribution
  • Highest accuracies possible
  • Regardless humidity
  • Non-corrosive, no maintenance required
  • Free in shaping
  • Non-porous and mirror smooth surfaces



Technical Data

Type Dimensions (L×W×H) Straightness Measuring length Parallelism Squareness Weight
Test straight-edge G3-100 106 x 35 x 20 mm DIN 876/00 - 00000 100 mm Squareness x 1.5   0.2 kg
Test straight-edge G3-150 160 x 35 x 20 mm DIN 876/00 - 00000 150 mm Squareness x 1.5   0.3 kg
Test straight-edge G3-200 210 × 35 × 25 mm DIN 876/00 - 00000 200 mm Squareness x 1.5   0.5 kg
Test straight-edge G3-300 310 × 50 × 30 mm DIN 876/00 - 00000 300 mm Squareness x 1.5   1.3 kg
Test straight-edge G3-500 510 x 70 x 40 mm DIN 876/00 - 00000 500 mm Squareness x 1.5   4.0 kg
Test angle A1-70 76 x 56 x 20 mm   70 x 50 mm   DIN 876/00 - 00000 0.2 kg
Test angle A1-100 106 × 76 × 20 mm   100 × 70 mm   DIN 876/00 - 00000 0.3 kg
Test angle A1-150 160 × 110 × 25 mm   150 × 100 mm   DIN 876/00 - 00000 0.8 kg
Test angle A1-200 210 x 140 x 30 mm   200 x 130 mm   DIN 876/00 - 00000 1.6 kg
Test square B1-70 76 x 76 x 20 mm   70 x 70 mm   DIN 876/00 - 00000 0.3 kg
Test square B1-100 106 × 106 × 25 mm   100 × 100 mm   DIN 876/00 - 00000 0.8 kg
Test square B1-150 160 × 160 × 30 mm   150 × 150 mm   DIN 876/00 - 00000 1.7 kg
Test square B1-200 210 x 210 x 35 mm   200 x 200 mm   DIN 876/00 - 00000 3.2 kg
Test cube C3-70 76 × 76 × 76 mm   70 × 70 × 70 mm   DIN 876/00 - 00000 1.0 kg
Test cube C3-100 106 × 106 × 106 mm   100 × 100 × 100 mm   DIN 876/00 - 00000 2.2 kg
Test cube C3-150 160 x 160 x 160 mm   150 x 150 x 150 mm   DIN 876/00 - 00000 7.1 kg
Test cube C3-200 210 x 210 x 210 mm   200 x 200 x 200 mm   DIN 876/00 - 00000 15.7 kg
other variations

For other dimensions and accuracies please contact us: Contact.

Accessories


GEO-plus

GEO-plus is an easy to handle, efficient measuring and evaluation program for dynamic measurements of machine tools. Dependent on the requirements the measurement values can be read in in proportion to the time or distance.
